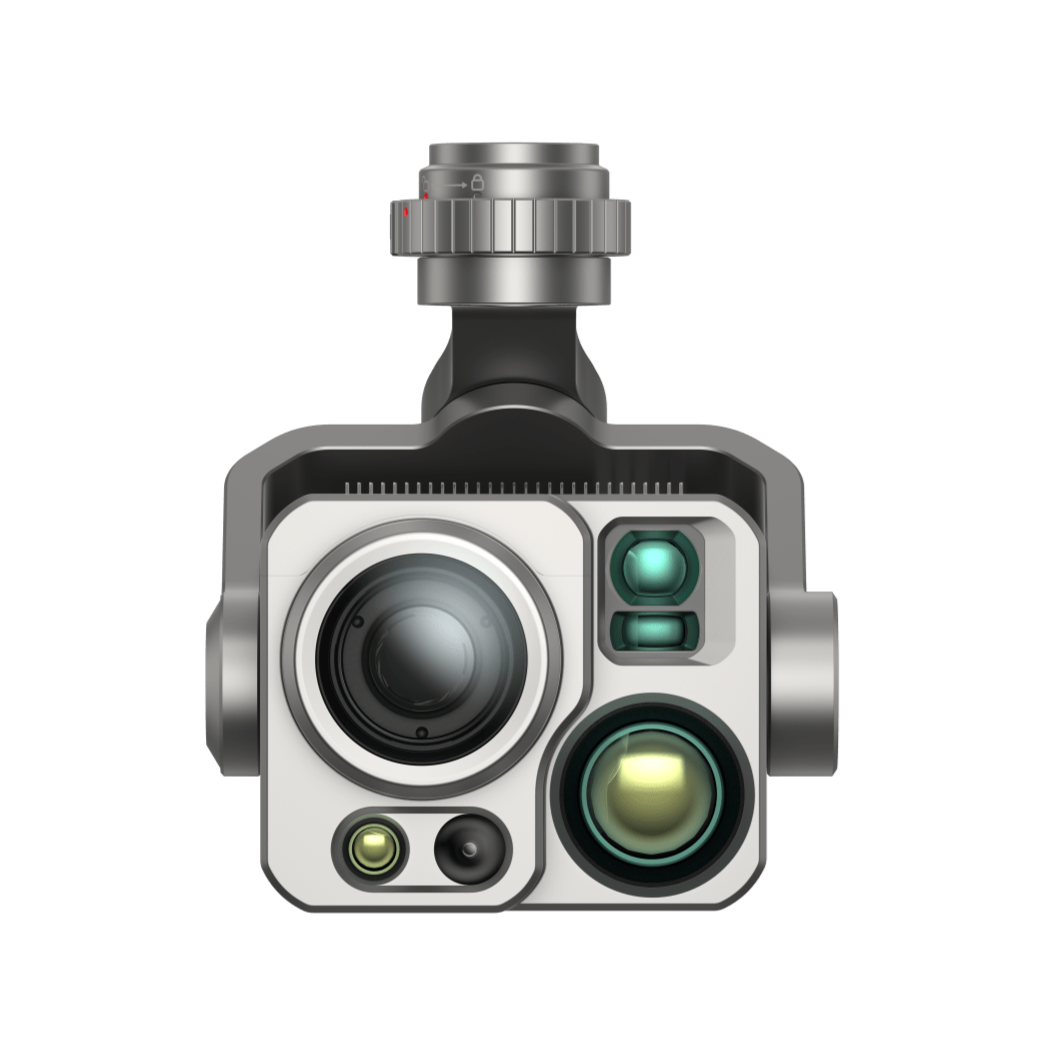

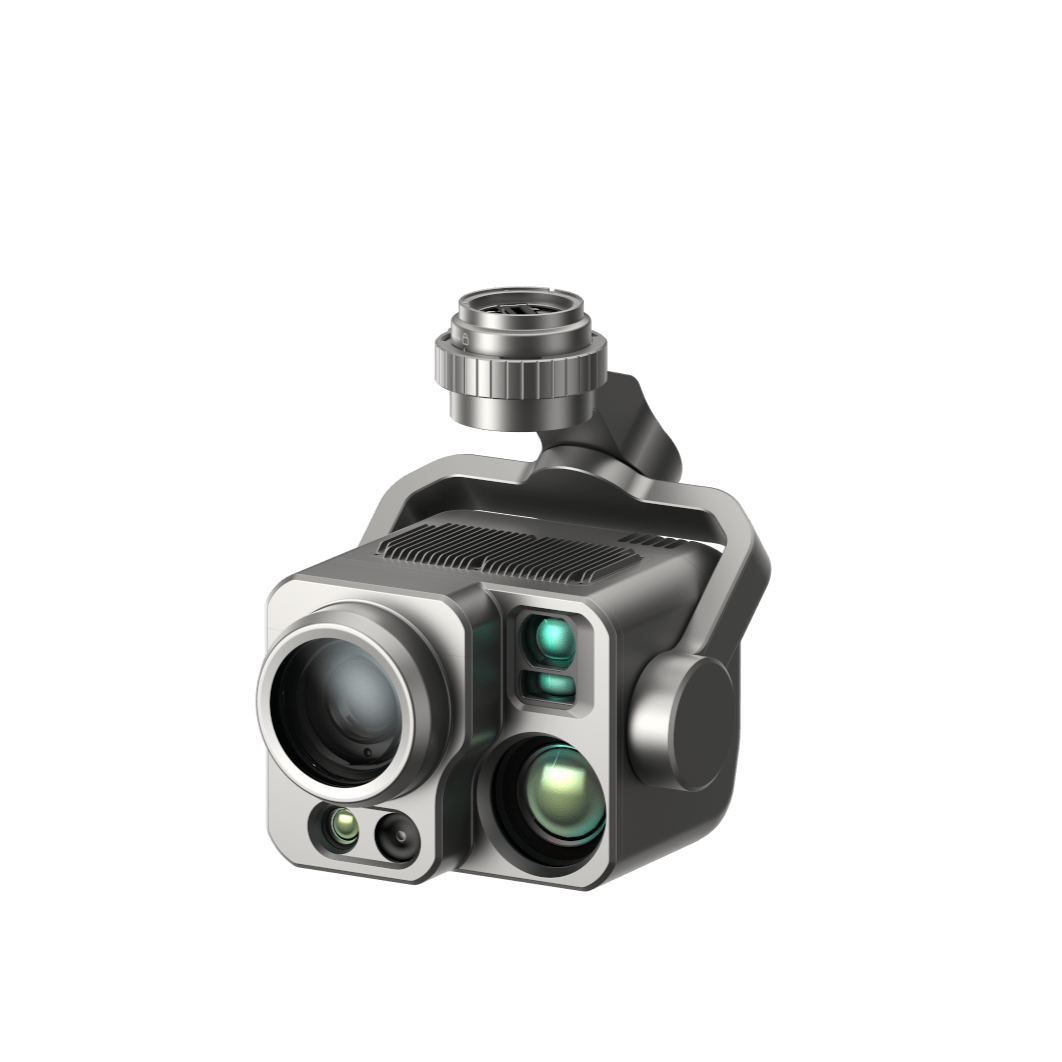

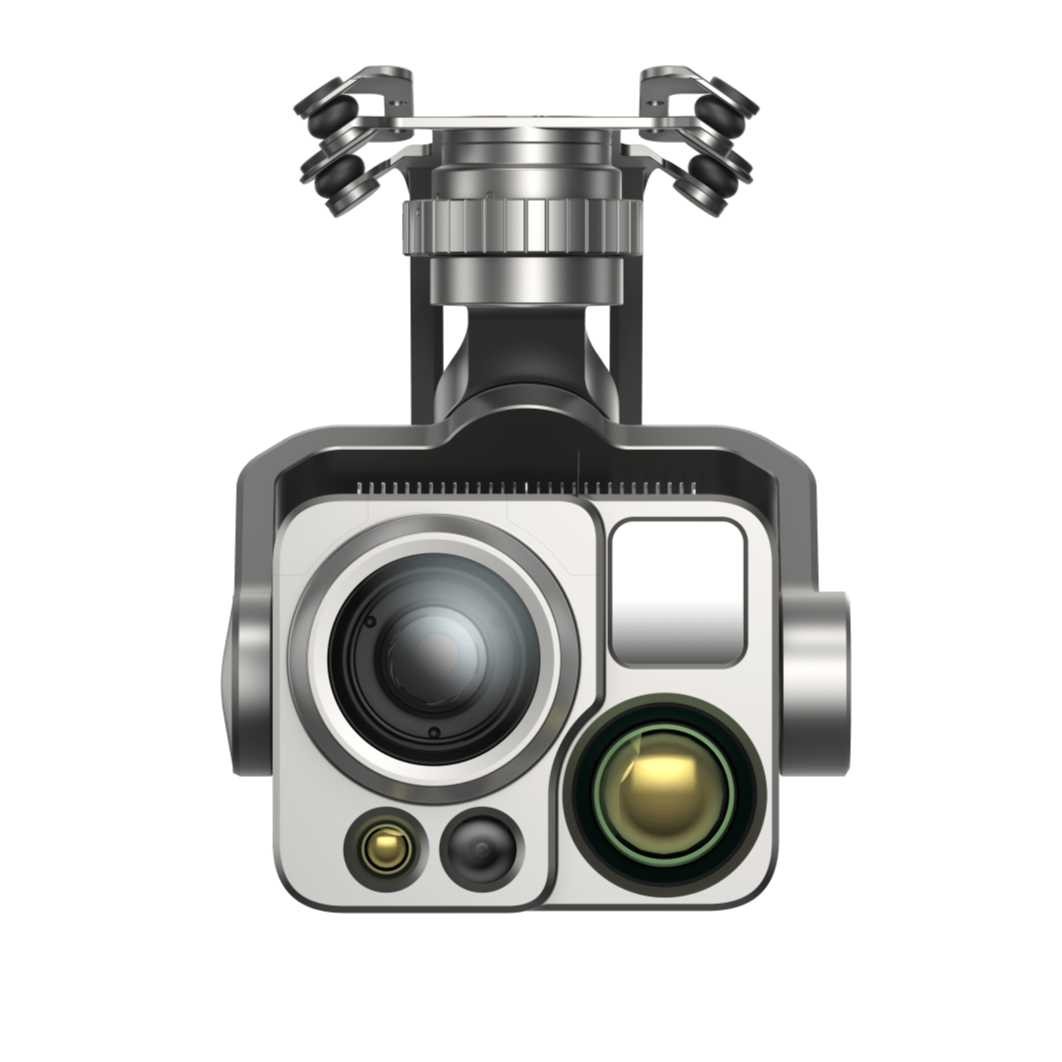

Autel Robotics Alpha DG-L35T Gimbal | Insight Beyond Limits

The Autel Robotics DG-L35T Gimbal is a versatile payload, integrating dual thermal imaging cameras (short/long focal length), a 4K 35x night vision Zoom camera, a wide-angle camera, and a laser rangefinder, giving you full-spectrum target monitoring and efficient support for long-range reconnaissance scenarios.

Key Features

Zoom Camera:

8 MP
4K 35x optical zoom
560x hybrid zoom
Supports ultra-sensitive starlight vision

Laser Rangefinder:

Measurement range: 10-2000 meters
Measurement accuracy: ± (1 meter + D×0.15%)

Wide Camera:

48 MP
Aperture: F/2.8
DFOV: 84°
Equivalent focal length: 24mm

Dual Thermal Camera:

640*512
56x hybrid zoom
13mm focal length wide-angle thermal imaging
45mm focal length long-range thermal imaging

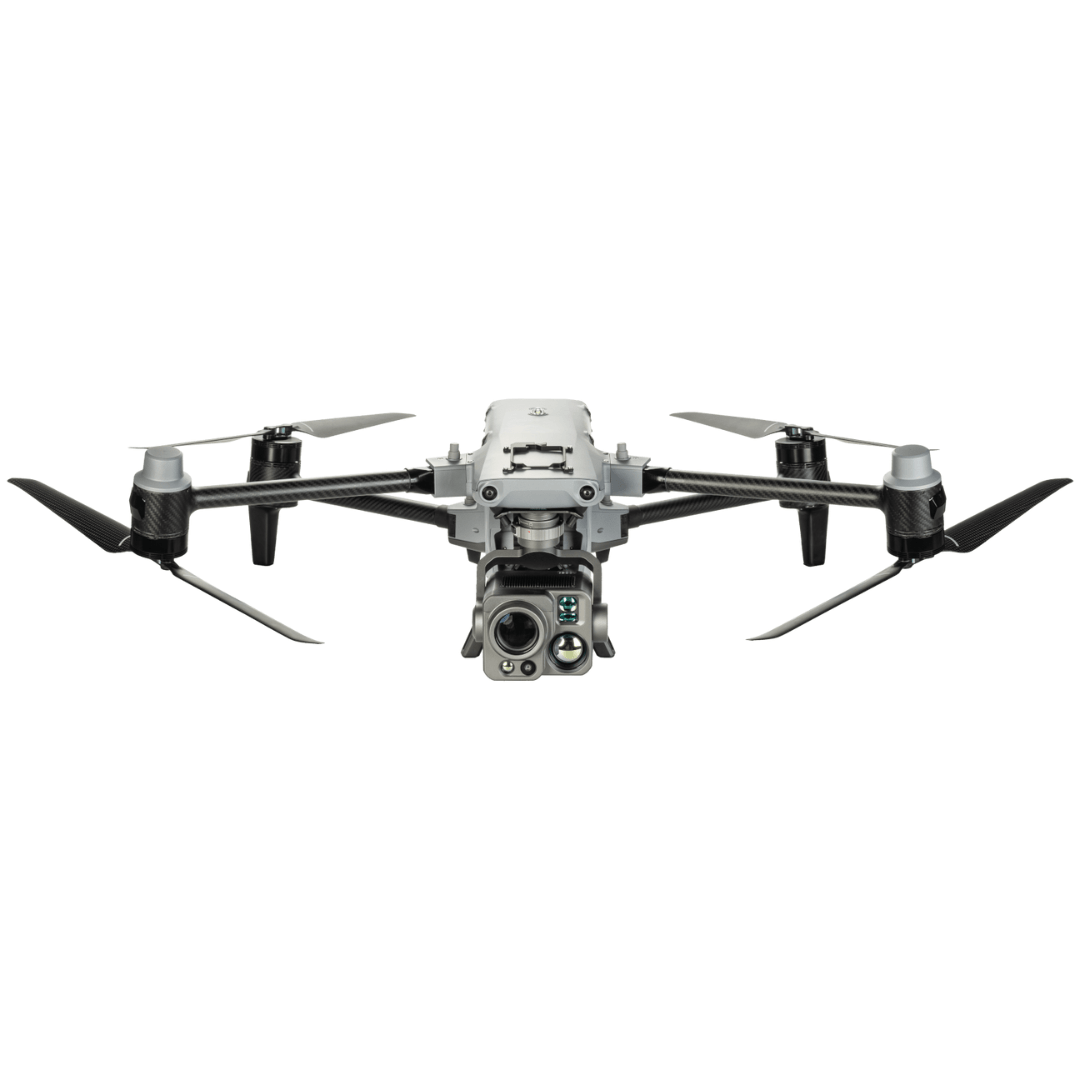

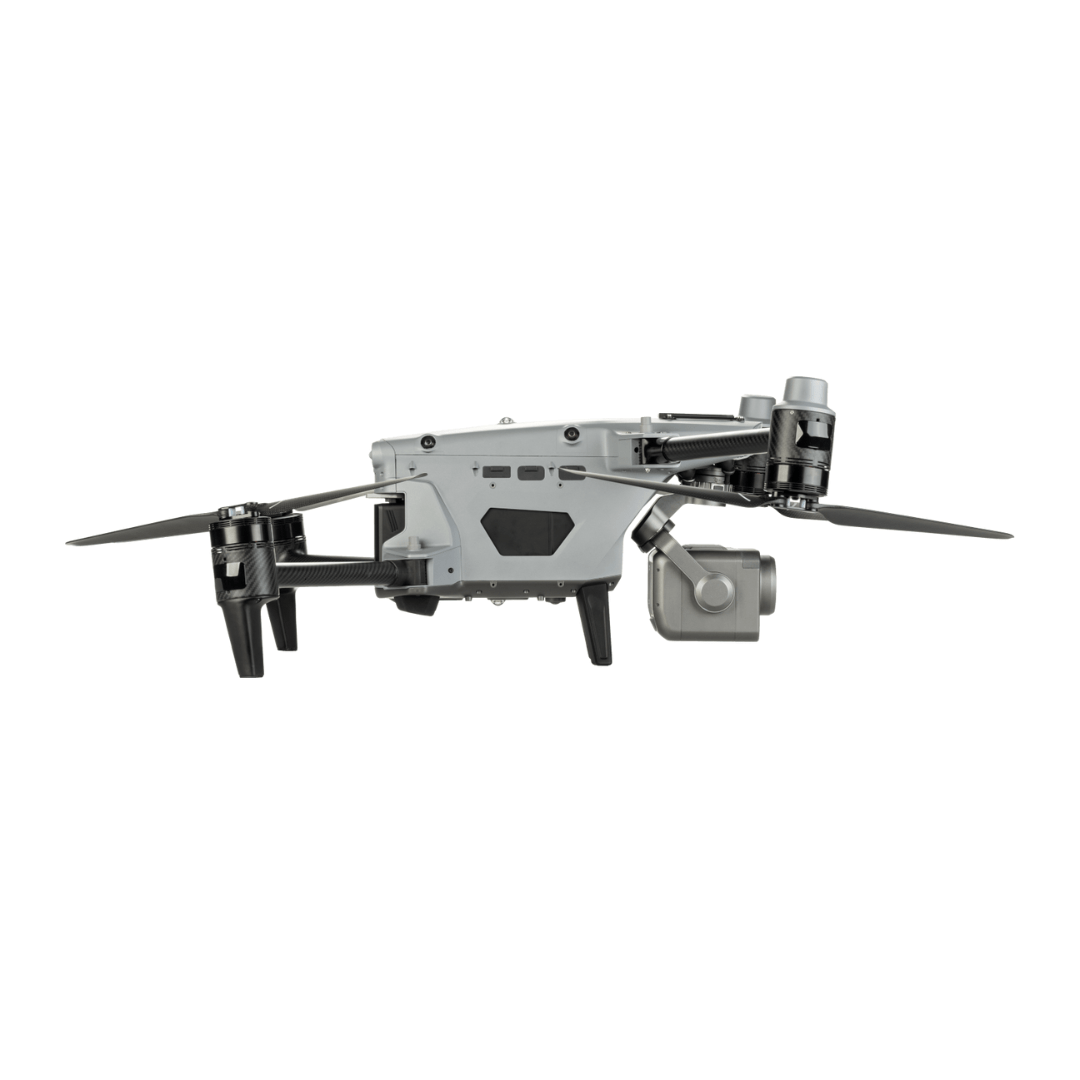

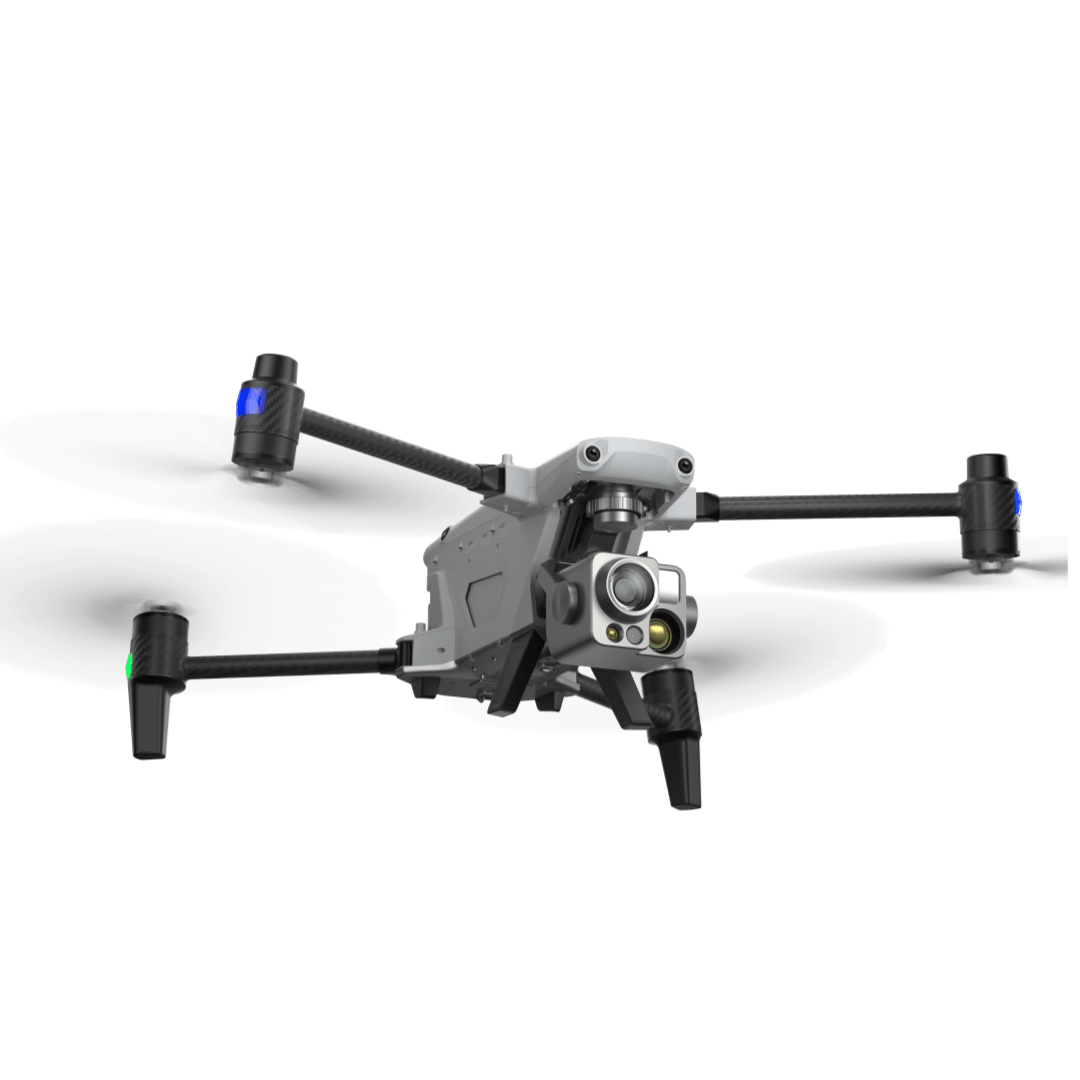

The Autel Robotics DG-L35T Gimbal is included in the Autel EVO Alpha DG-L35T Bundle.

In the Box

1 - Autel Robotics Alpha DG-L35T Gimbal

Specifications

DG-L35T
Autel Alpha Wide Camera
Sensor	1/2 CMOS, Effective pixels: 48M
Lens	DFOV: 84° Equivalent Focal Length: 24 mm Aperture: f/2.8 Focusing Distance: 1m ~ ∞
ISO Range	Photo: ISO100~ISO6400 Video: ISO100~ISO64000 (Night scene mode: up to ISO256000)
Autel Alpha Zoom Camera
Sensor	1/1.8" CMOS
Lens	FOV: 66.7-34.6° Focal Length: 34.7~838mm Aperture: f/1.61~f/5.19
Zoom Range	Optical Zoom: 1~35 times Digital Zoom: 35~560 times
ISO Range	Photo: ISO100~ISO6400 Video: ISO100~ISO64000 (Night scene mode: up to ISO320000)
Photo	Format: 8bit JPG，12bit DNG Resolution: 3840*2160
Video	Format: MP4/MOV Max Resolution: 3840*2160 P30
Autel Alpha Thermal Camera (Wide)
Sensor	Uncooled VOx Microbolometer
Lens	FOV：42° Focal length: 13mm Aperture: f/1.2
Resolution	640*512 P25
Temperature Measurement Range	-20℃ to +150℃，0℃ to +550℃
Temperature Measurement Accuracy	3℃ or ±3% of reading (using the larger value) @ ambient temperature range from -4℉ to 140℉ (-20℃ to 60℃)
Autel Alpha Thermal Camera (Tele)
Sensor	Uncooled VOx Microbolometer
Lens	FOV：12.3° Focal length: 45mm Aperture: f/1.2
Zoom Range	Wide Digital Zoom: 1~3.5 times Tele Digital Zoom: 3.5~56 times
Resolution	640*512 P25
Temperature Measurement Range	-20℃ to +150℃，0℃ to +550℃
Temperature Measurement Accuracy	3℃ or ±3% of reading (using the larger value) @ ambient temperature range from -4℉ to 140℉ (-20℃ to 60℃)
Autel Alpha Laser Rangefinder
Measuring Range	10-2000m
Measurement Accuracy	± (1m + D×0.15%) *D is the distance to a vertical surface
